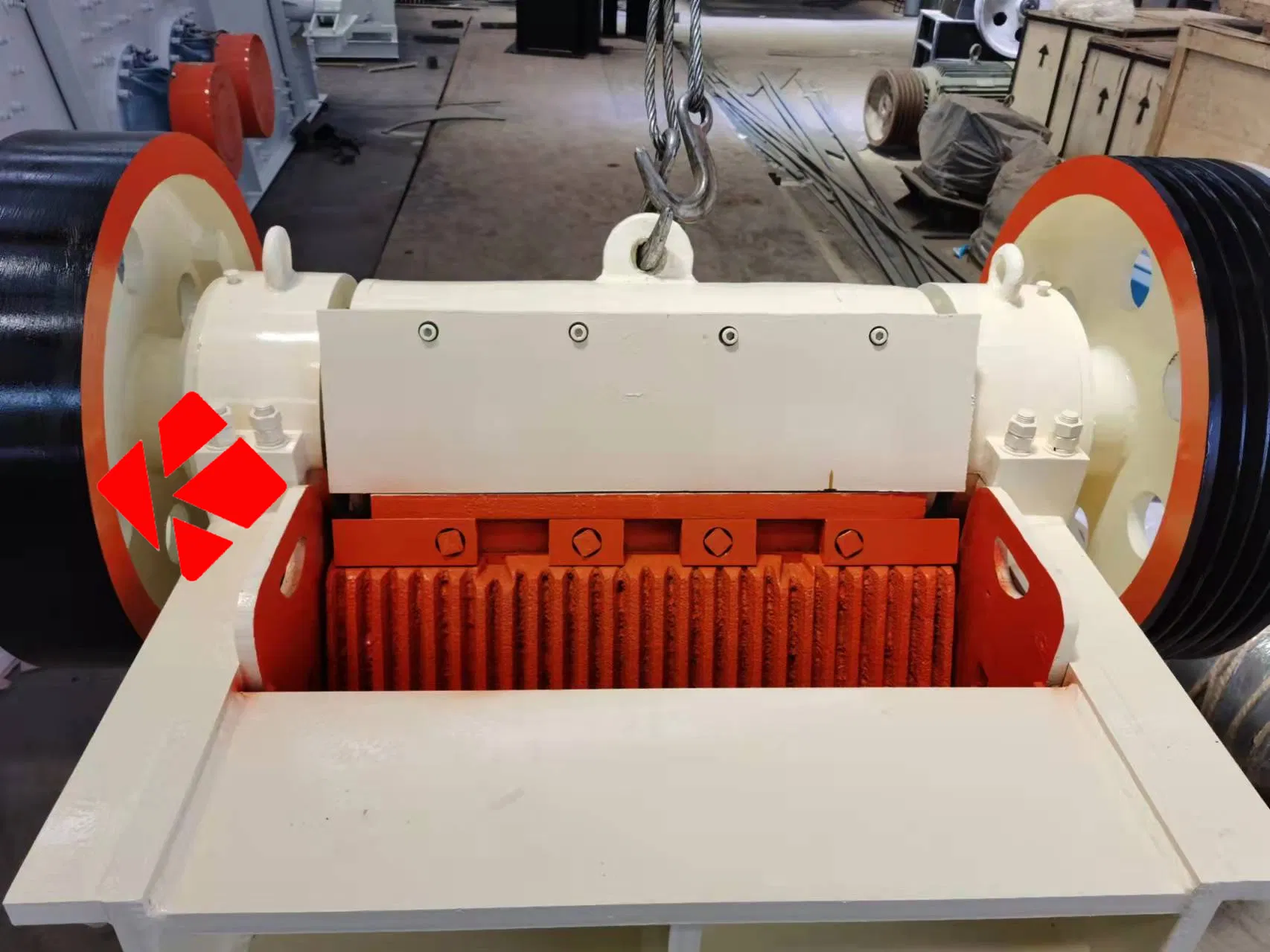

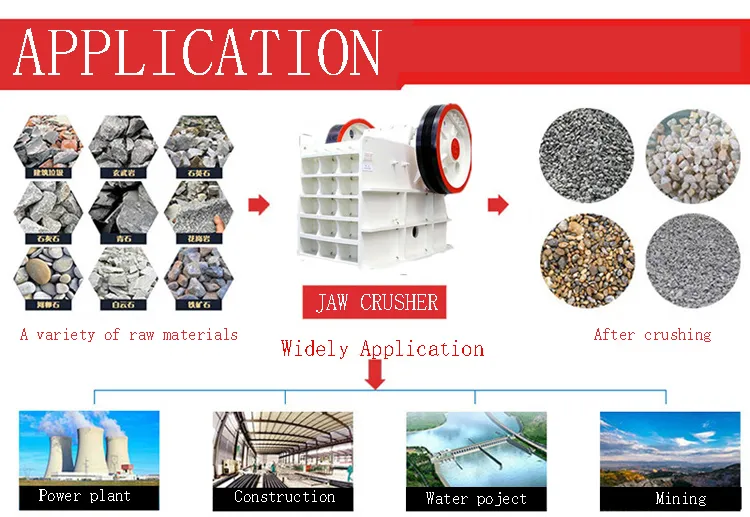

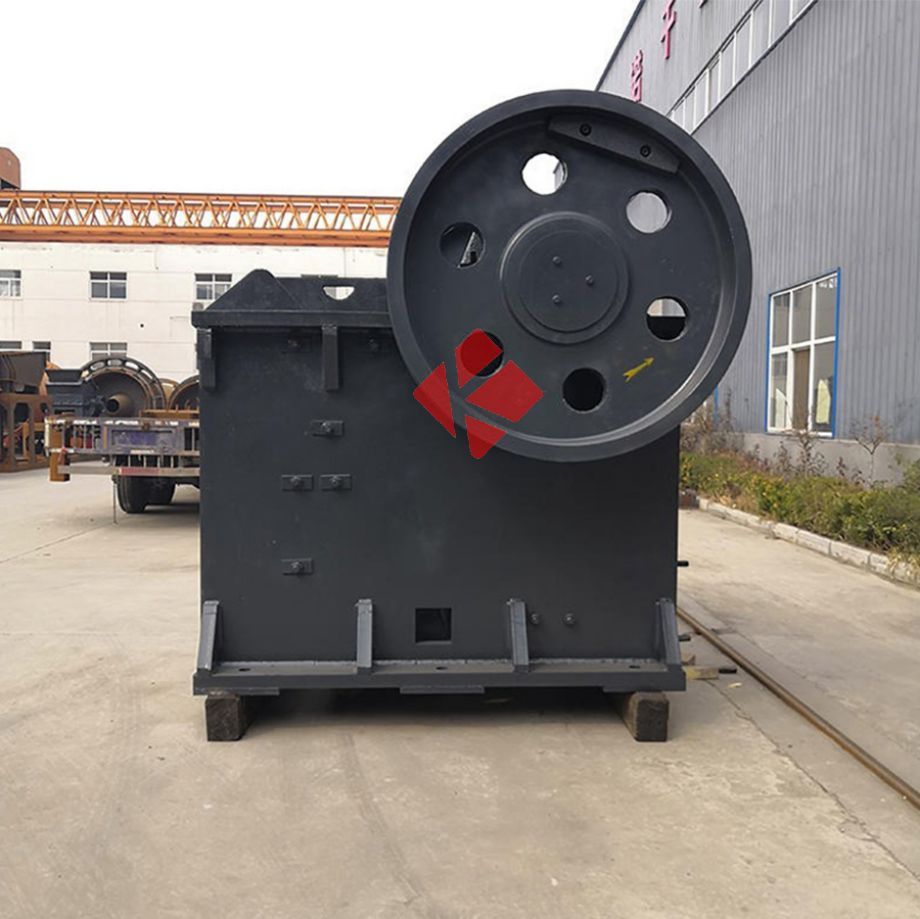

The Jaw Crusher Machine is a coarse crushing equipment widely used in mining, construction, building materials, highways, railways, and other industrial fields. It is designed to handle tough materials with high efficiency.

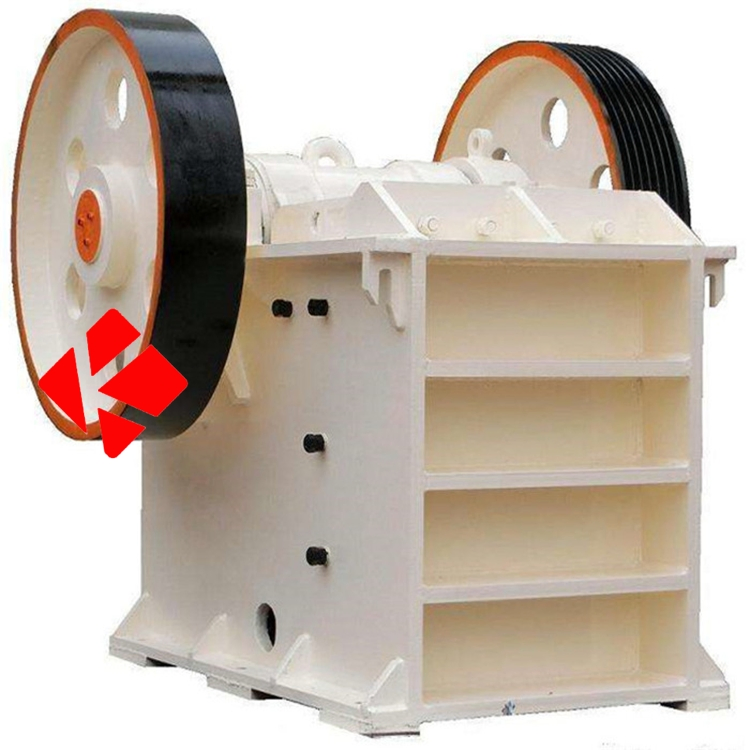

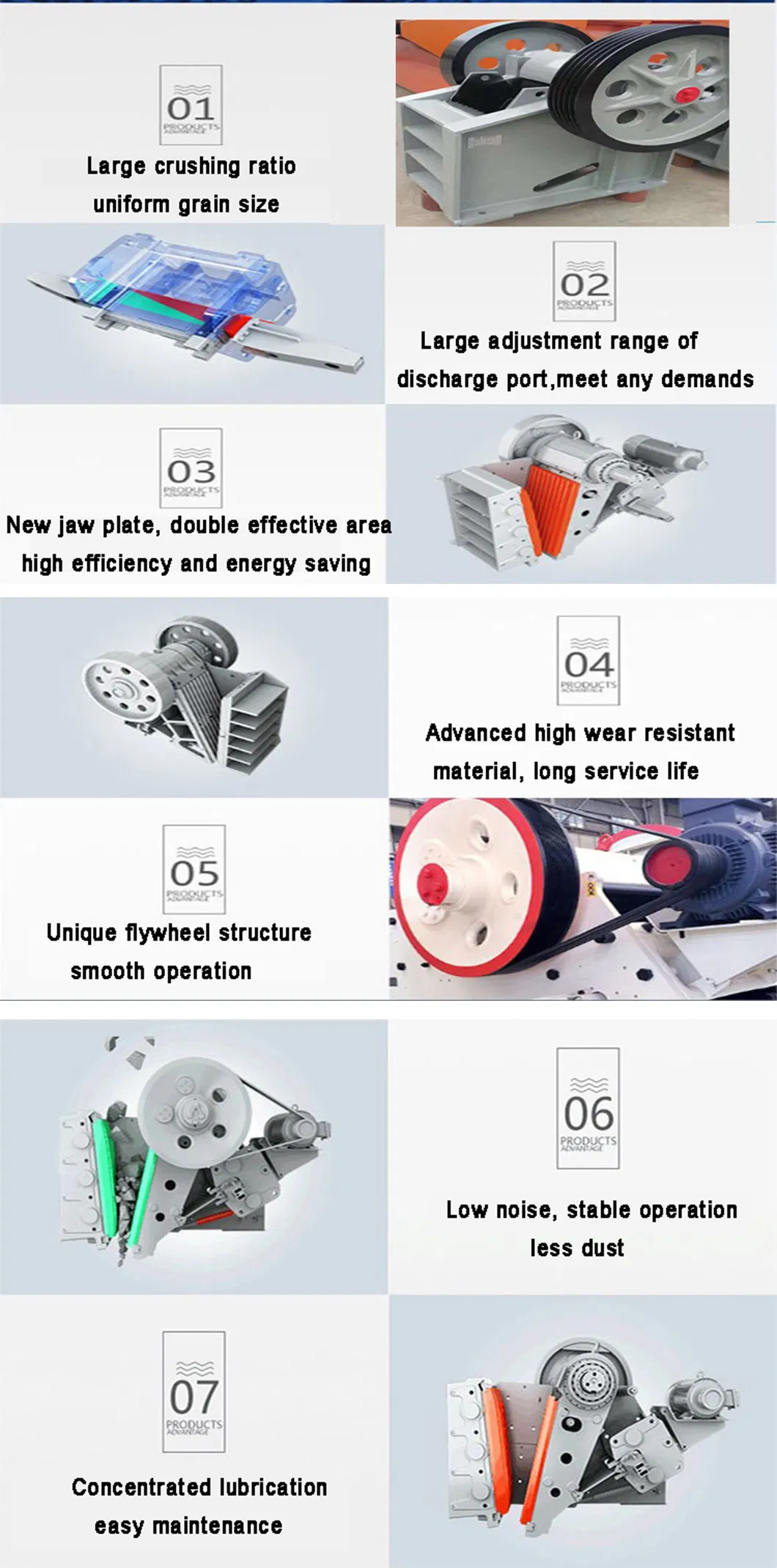

The PE and PEX series Jaw Crusher utilizes a large-scale tilting complex style. It is driven by a motor through pulleys and an eccentric shaft. The moving jaw plate follows a scheduled reciprocating trajectory, crushing materials against the fixed jaw plate within the broken shield cavity. Finished materials are discharged through the lower netting mouth.

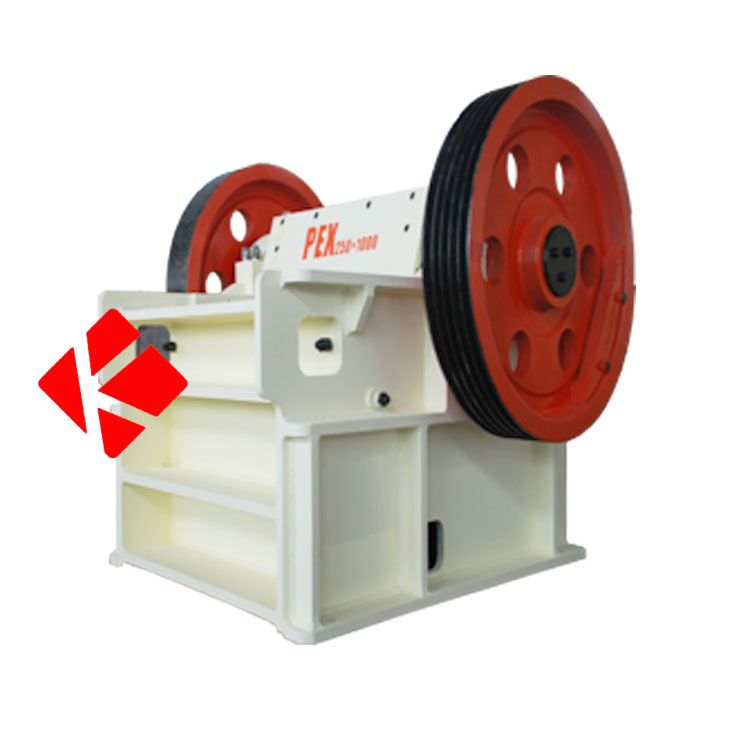

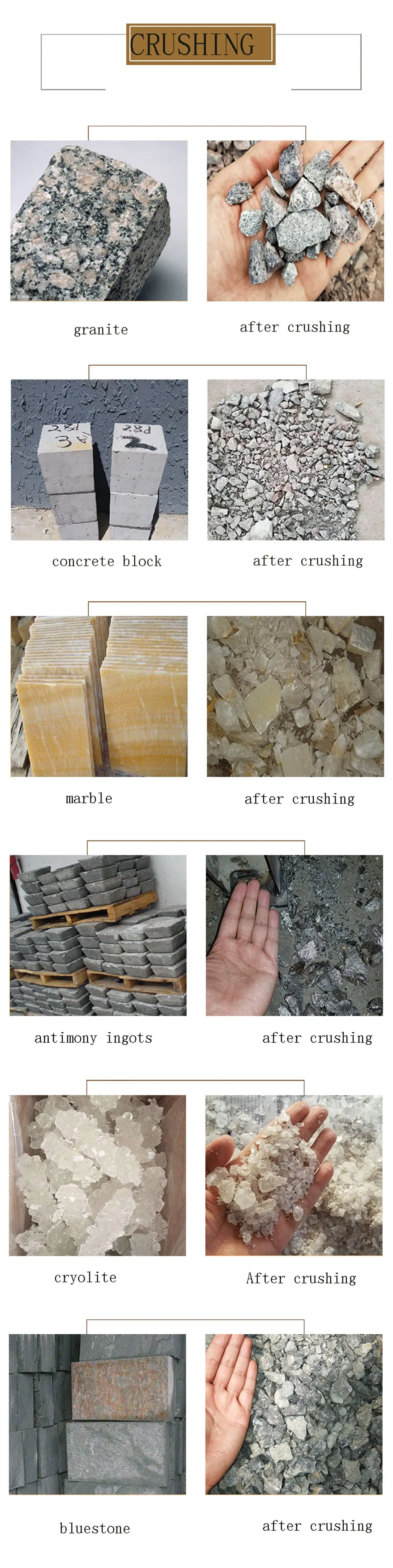

It can process various ores and rocks with compressive strengths not exceeding 320Mpa. The PE series is typically used for rough-breaking, while the PEX series is designed for small and thin breaking.
| Model | Feed opening (mm) | Max feed size(mm) | C.S.S (mm) | Capacity (t/h) | Power (kw) | Overall dimensions (mm) |
|---|---|---|---|---|---|---|
| PE250*400 | 400*250 | 200 | 20-50 | 5-20 | 15 | 1430*1310*1340 |
| PE400*600 | 400*600 | 350 | 40-100 | 15-60 | 30-37 | 1700*1732*1653 |
| PE500*750 | 500*750 | 425 | 50-100 | 40-110 | 45-55 | 2035*1921*2000 |
| PE600*900 | 600*900 | 480 | 65-160 | 90-180 | 55-75 | 2290*2206*2370 |
| PE750*1060 | 750*1060 | 630 | 80-140 | 110-230 | 90-110 | 2655*2302*3110 |
| PE900*1200 | 900*1200 | 750 | 95-165 | 220-450 | 110-132 | 3800*3166*3045 |
| PE1000*1200 | 1000*1200 | 850 | 200-300 | 280-560 | 110-160 | 5350*4280*3050 |
| PE1200*1500 | 1200*1500 | 1020 | 150-300 | 400-800 | 160-220 | 6380*5310*3710 |
| PE1500*1800 | 1500*1800 | 1200 | 210-360 | 520-1100 | 280 | 7460*6235*4249 |

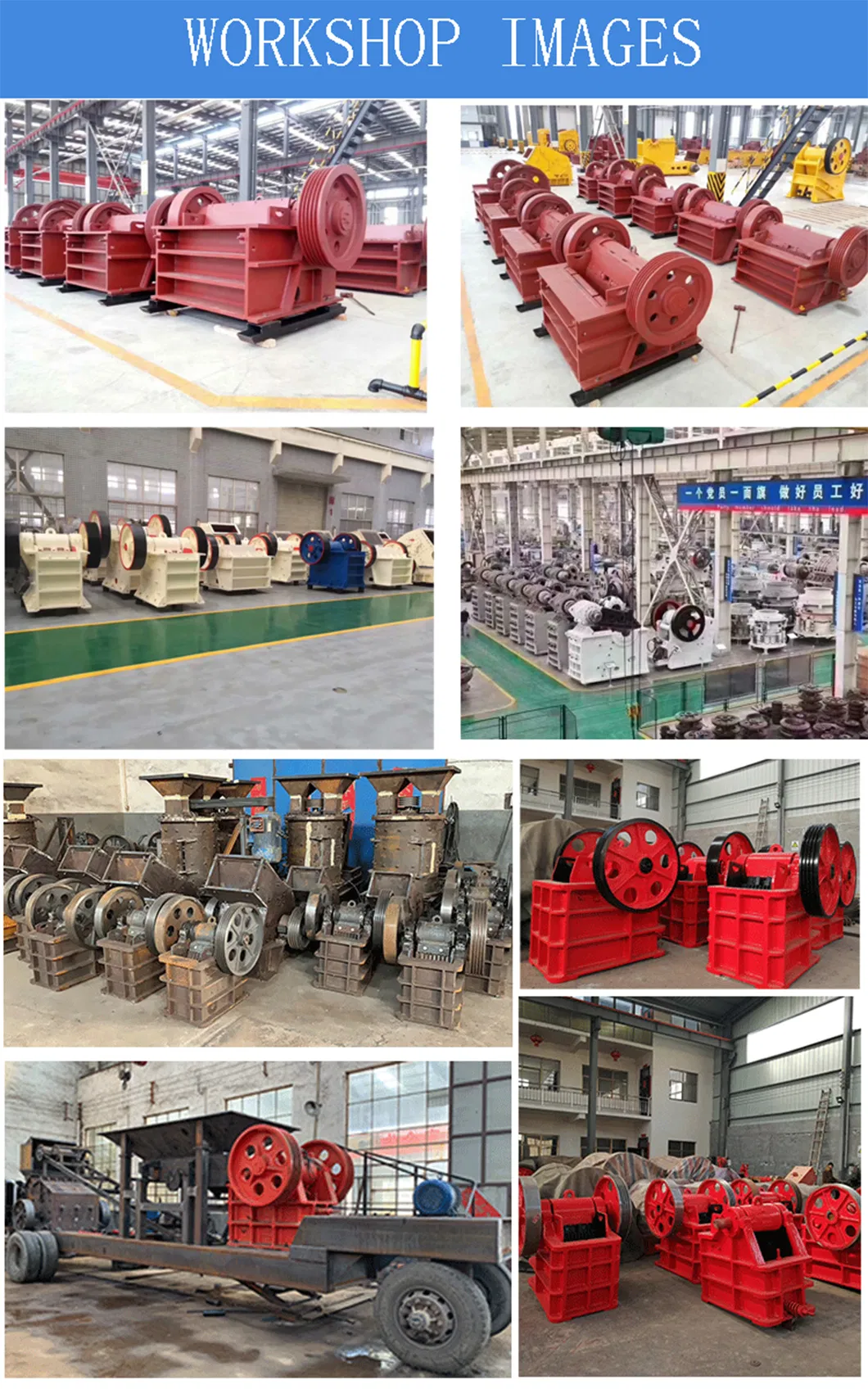

We are a modern enterprise focusing on the research, development, production, and sales of stone crushers. Our facility is equipped with advanced production equipment and a strong technical force.
Our experienced R&D team continuously pursues innovation, combining market demand with advanced technology to design high-performance, energy-saving crushers. Our product range includes jaw crushers, impact crushers, cone crushers, and hammer crushers, serving the needs of ore crushing, construction waste processing, and road construction globally.
With a professional after-sales team, we provide comprehensive support including equipment installation, commissioning, technical training, and maintenance to ensure uninterrupted production for our customers.
